Calendar API

Connect enquiries and booking tools to the appointments your team manages in Mango9.

In the CRM: Settings → Developer APIs → Calendar API

Turn an enquiry into a booked conversation

Use the Calendar API when another business tool needs to read or maintain Mango9 appointments. A website form, an external booking service or a configured automation can use it to connect the enquiry to the next scheduled conversation.

For example, a prospect requests a home-improvement consultation. Your integration checks the available slots, confirms the chosen time and creates the appointment. The team then works from the same Calendar record.

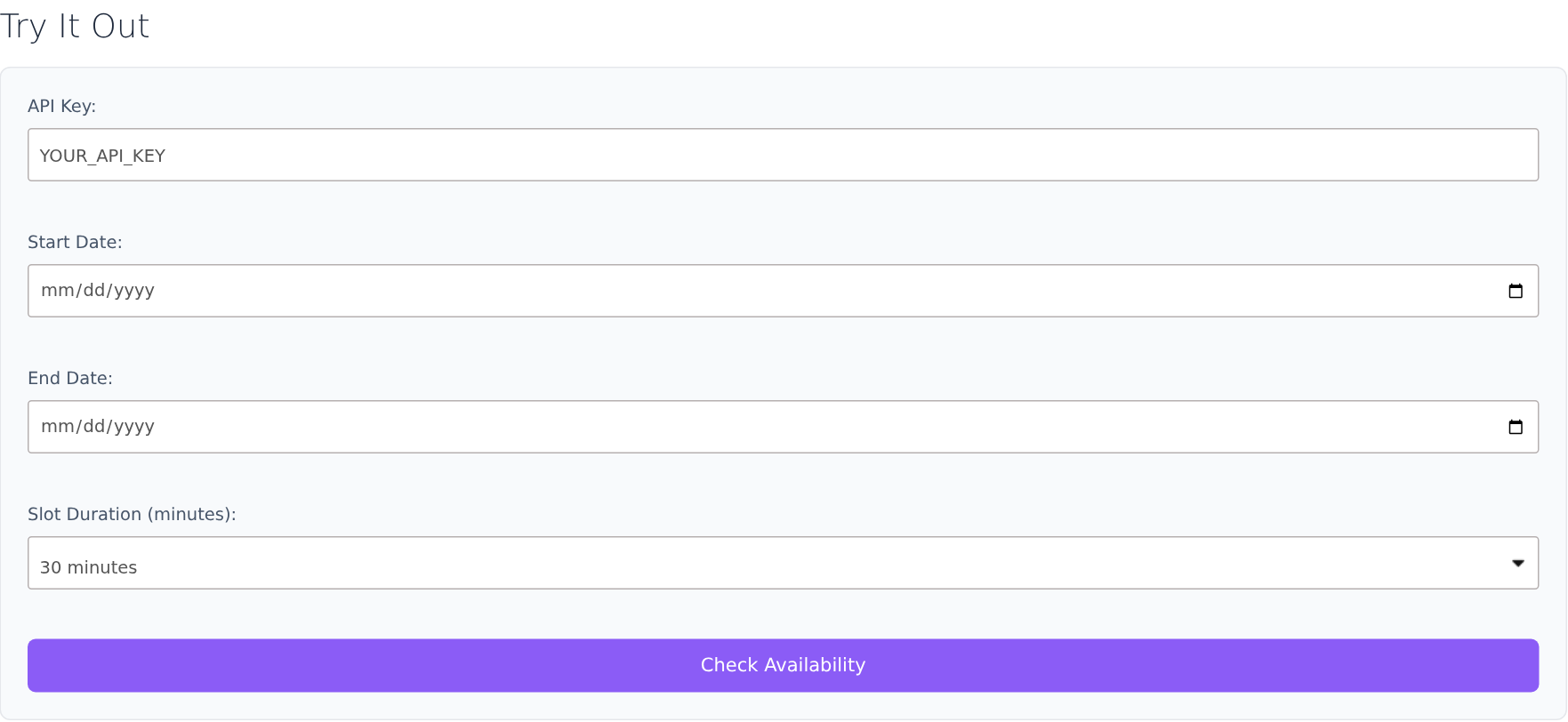

Calendar API availability form with dates and slot duration — Availability checks use a start date, end date and slot duration. Reading a suggested slot does not reserve it. Select the image to enlarge it.

Choose the appointment action

Choose the appointment action
Action	Request	Use it for
Get Events	GET /api/calendar/events	Read appointments with date filters, page and limit. The maximum page size is 100.
Get Event	GET /api/calendar/event	Read the event identified by event_id.
Today / Upcoming	GET /api/calendar/today or /api/calendar/upcoming	Prepare the daily list or the next appointments. Upcoming supports up to 50 results.
Availability	GET /api/calendar/availability	Find suggested slots using start_date, end_date and slot_duration. Duration is 15–120 minutes.
Create	POST /api/calendar/create	Add an appointment.
Update / Delete	POST /api/calendar/update or /api/calendar/delete	Change or remove the event identified by event_id.

Create a clear appointment record

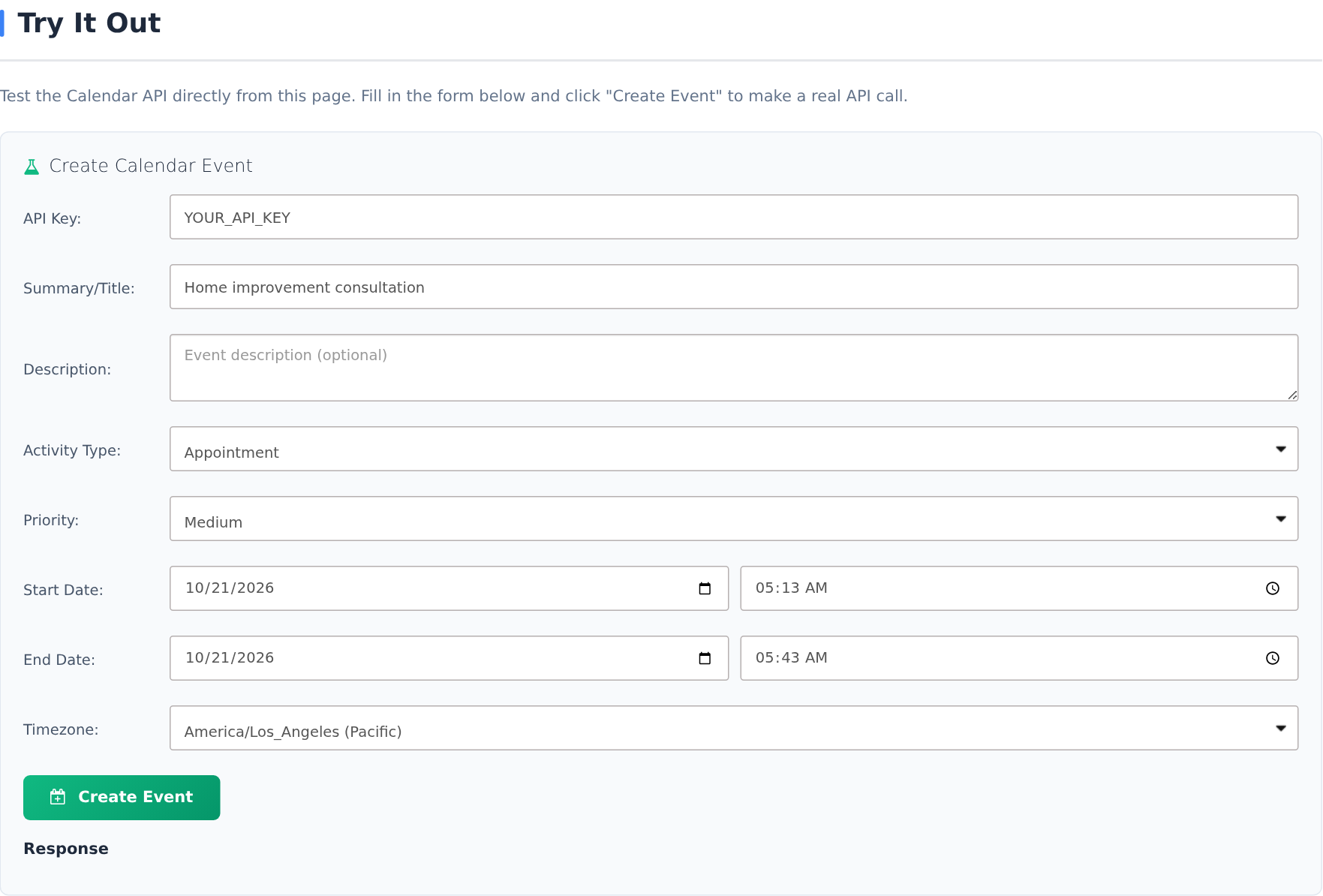

Current Calendar API create form with an example consultation and Los Angeles time zone — Illustrative form values; no appointment was created. This form creates a calendar event. Select the image to enlarge it.

Select the Create tab in Calendar API. Paste the saved API secret into API Key.
Enter a useful Summary/Title, such as Home improvement consultation, and the notes the team needs.
Choose the activity, priority, start date/time and end date/time. Make the end later than the start.
Choose a city-based time zone such as America/Los_Angeles. Use the customer’s agreed appointment time consistently.
Select Create Event only when ready to create a real appointment. Keep the returned event ID.
Open Calendar and confirm the title, date, time and owner before enabling further automation.

Give your developer the right fields

Creation accepts a JSON body or ordinary form fields. Send apiKey, summary, start, end and an explicit timezone. Optional fields include description, activity, priority and reminders in minutes. Use the event ID returned by creation for later updates.

Use the same server as the account. This request example describes a real record-creation action; replace placeholders in a controlled integration test.

POST https://2.mango9.com/api/calendar/create
Content-Type: application/json

{
  "apiKey": "YOUR_API_KEY",
  "summary": "Home improvement consultation",
  "description": "Discuss the customer’s project and next steps.",
  "start": "2026-11-12 10:00:00",
  "end": "2026-11-12 10:30:00",
  "timezone": "America/Los_Angeles",
  "activity": "Appointment",
  "priority": "Medium",
  "reminders": 30
}

Connect the booking to follow-up

Creating an appointment triggers the configured appointment-scheduled workflow event. Use the corresponding workflow to notify the assigned people or prepare the next action. Check the workflow before testing a booking in a live account.

Keep appointment creation and customer confirmation coordinated. Repeating an uncertain create request can produce another booking, so retain the event ID and check the Calendar before retrying.

The response uses err, msg and data. err 00 indicates success; 01 means a key is missing and 02 means the key is invalid. Read the message when a field needs correction.
